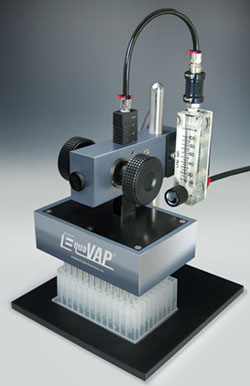

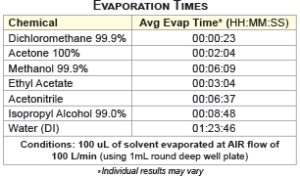

Evaporation methods for controlling the concentration of a single sample can be simple and routine, but ensuring consistency among all samples in a high-throughput workflow can be challenging. Analytical’s EquaVAP Blowdown Evaporator uses internal flow equalizers to distribute equal output across all needle ports to ensure even and symmetrical evaporation in all your samples. EquaVAP is available in 24, 48, 54, 96 and 384 position models to accommodate collections plates as well as Para-dox® aluminum reaction blocks. See evaporation time table below.

• Rapidly evaporates common organic solvents (0-100LPM)
• Internal flow equalizers – distributes equal output across all needle ports to ensure even and symmetrical evaporation
• Stainless Steel Needle Tips – long term robust use, sturdy, wide solvent compatibilities
• Step-down Height Adjustment – offers positive repeatable height positions
• Stand Alone – simple to operate, connects to Nitrogen supply and standard socket
• Small Footprint (8” base) – fits into small glove boxes and standard fume hoods
