Fluidic Transfer

Hastelloy C Tubing & Fittings

For special applications where standard grade stainless steel HPLC tubing cannot be utilized, Hastelloy C is the perfect choice. Hastelloy C tubing and fittings are most commonly recommended for corrosion resistance. This nickel-chromium molybdenum alloy is extremely resistant to most acids, including strong oxidizers like ferric and cupric chlorides, as well as nitric, formic and acetic acids, wet chlorine, sea water, brine solutions, and other mixtures that might contain nitric acid or oxidizing acids with chloride ions. All of the Hastelloy C tubing and fittings offered are HC-22, which is more corrosion resistant than HC-276. Hastelloy C also has excellent resistance to pitting, stress corrosion cracking, and oxidizing atmospheres up to temperatures well beyond other standard components found within chromatographic systems.

The following options are available:

• 1/16” OD tubing with Inner Diameter of 0.010″, 0.020″, 0.030” or 0.040″

• 1/8” OD tubing with Inner Diameter of x 0.070” or 0.085″

• Various lengths available

*Custom lengths are available upon request. All extended lengths of tubing will be supplied coiled unless otherwise requested.

*We do not make or offer a Hastelloy C nut. Standard 316 Stainless Steel nuts can be utilized with Hastelloy C fittings.


    Click image thumbnail or SKU below for specific product details
    ImageSKUDescriptionUnitsPriceQty / Add to Cart
    791210 Hastelloy C Tubing, 1/16" OD x .020" ID x 10 FT
    Hastelloy C Tubing - 1/16" ODEach$21.00$1,996.00
    791210 Hastelloy C Tubing, 1/16" OD x .020" ID x 10 FT
    Hastelloy C Tubing - 1/8" OD$32.00$480.00
    ADV-VF5 Valco Ferrule, 1/16"
    1531HCHastelloy C Ferrule, 1/16"Each$11.00
    ADV-VF5 Valco Ferrule, 1/16"
    HCF116Hastelloy C22, ZDV, Ferrule, 1/16"$13.00
    woocommerce-placeholder
    1618Hastelloy C, ZDV Union for 1/16"Each$140.00
    woocommerce-placeholder
    HCU116Hastelloy C22, ZDV, Union, 1/16"$203.00
    woocommerce-placeholder
    HCT116Hastelloy C22, ZDV, Tee, 1/16", 0.029" Thru-hole$225.00
    woocommerce-placeholder
    HCX116Hastelloy C22, ZDV, Cross,1/16", 0.029" Thru-hole$205.00
    woocommerce-placeholder
    HCF018Hastelloy C22, ZDV, Ferrule, 1/8"$14.00
    woocommerce-placeholder

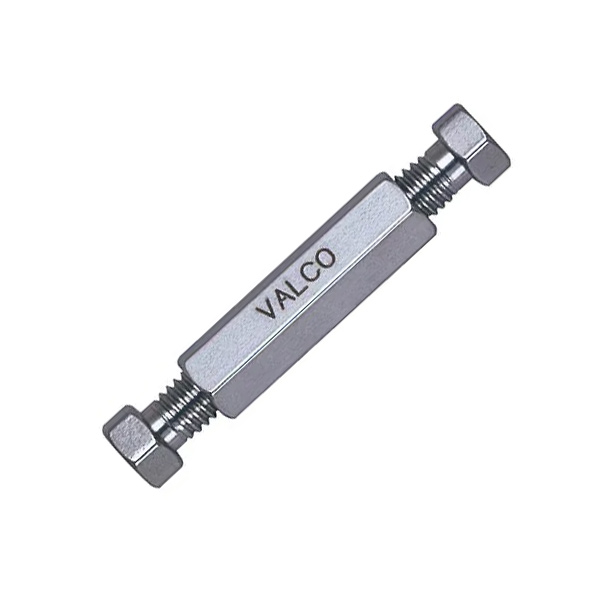

    HCU018Hastelloy C22, ZDV, Union, 1/8"$164.00
    woocommerce-placeholder

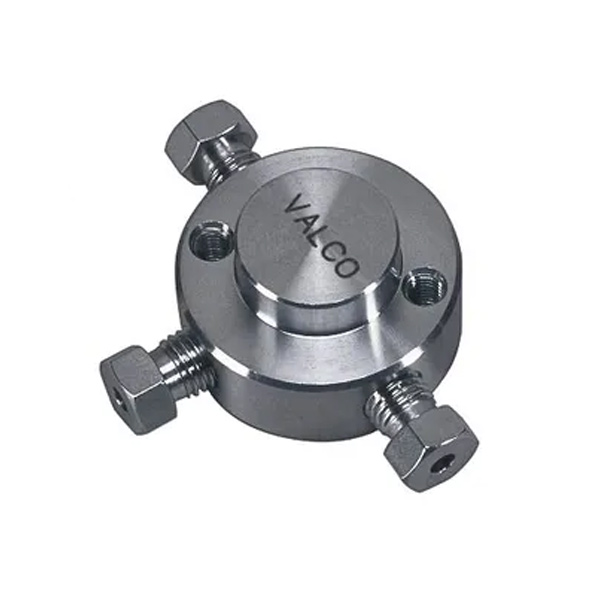

    HCT018Hastelloy C22, ZDV, Tee, 1/8", 0.029" Thru-hole$419.00
    woocommerce-placeholder

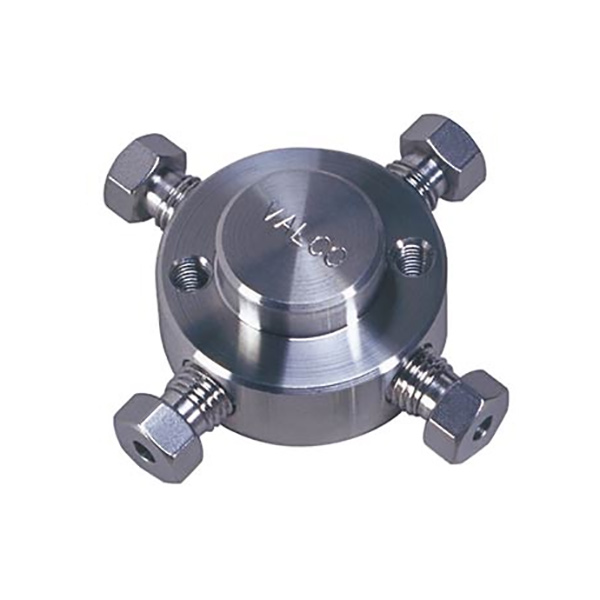

    HCX018Hastelloy C22, ZDV, Cross,1/8", 0.029" Thru-hole$260.00
    woocommerce-placeholder
    HCF132Hastelloy C22, ZDV, Ferrule, 1/32"$28.00
    woocommerce-placeholder

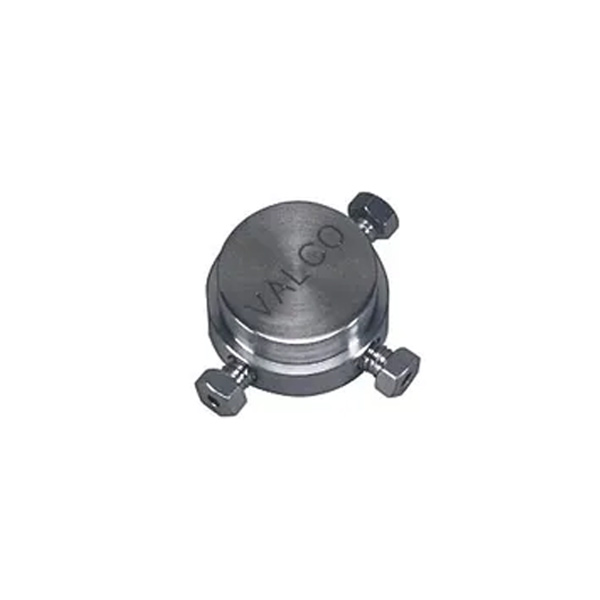

    HCT132Hastelloy C22, ZDV, Tee, 1/32", 0.010" Thru-hole$225.00
    woocommerce-placeholder

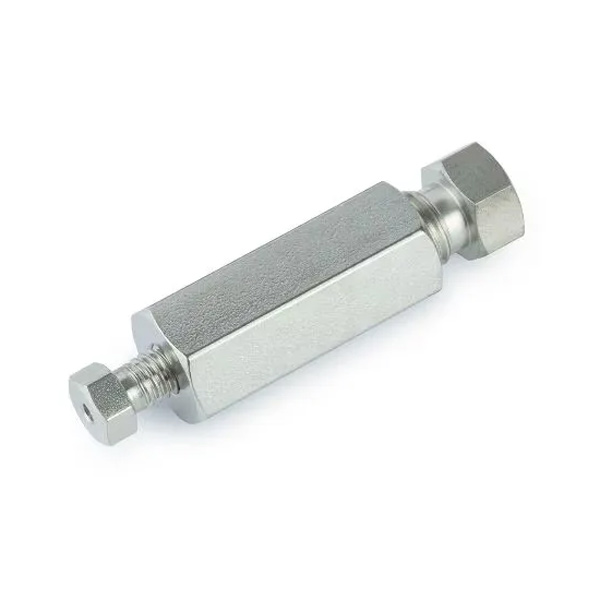

    HCRU1418LHastelloy C22 Reducing Union, 1/4" to 1/8"Each$150.00
