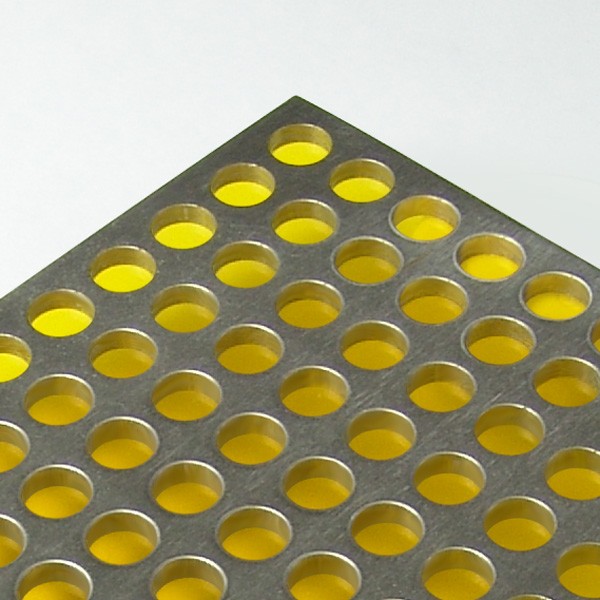

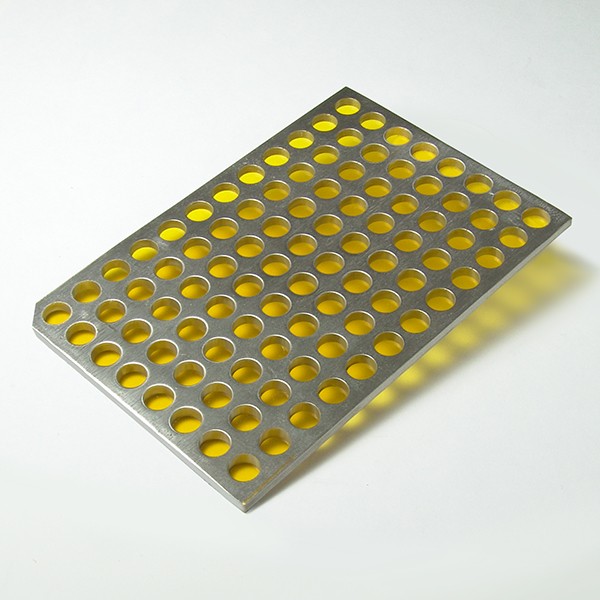

3mm Thick Stainless Steel Plate (96 Holes) with 0.3mil Kapton Liner

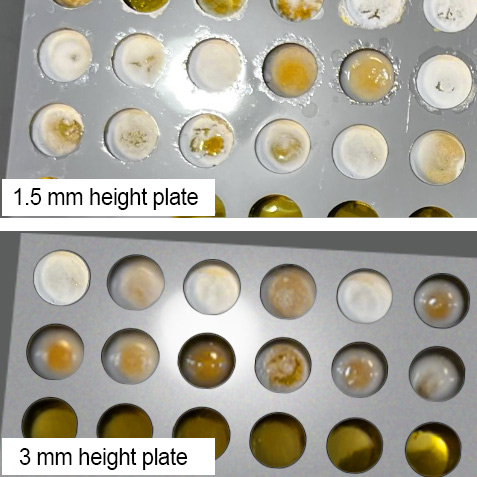

This plate is twice as thick as our standard 1.5mm Kapton plate. For slurry sampling applications, this added thickness is crucial in containment of the slurry samples to prevent splashout from the well.
• SS plate thickness: 3mm
• Liner thickness: 0.3mil
• Well diameter: 6.35mm
• Used to collect Powder X-Ray Diffraction data on polymorph screening samples
• Designed for both transmission and/or reflection instruments
Qty/Pkg: 1, 10, 100 (select above)
