Column Temperature Control

Monocon Gen II Single Column Heater Sleeve Controller

$3,486.00

Units/Pkg: Each

SKU: MONOCON

Monocon Gen II Single Column Heater Sleeve Controller

The MONOCON is the latest single column heater controller from Analytical. It is the next generation of the original MonoSleeve, and controls Analytical’s new Gen II HotSleeve+ column heaters. Significant new features include:

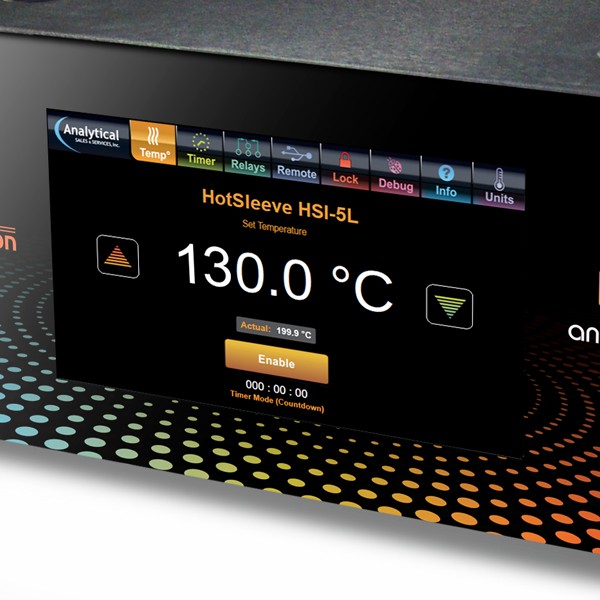

Touchscreen Interface
• Provides simple and intuitive interaction with the device
• Provides greater utility to operators by allowing for gloved operation
• Tabbed, modern and familiar interface

Continuous Display of Critical Performance Data, Including:
• Current temperature
• Set point temperature
• Elapsed time or time remaining until automated cutoff
• Activation status of heating unit
• Specifications and parameters of active heaters

High Power Operation
• Support for heaters with a temperature range of 5ºC Above Ambient to 130ºC
• Faster heater to-temperature time allowing for decreased downtime
• Supports 250 W  heaters allowing for increased performance and higher capacity operation

Screen Lock
• Prevents accidental touches from changing settings

Stacking Enclosures
• Preserves space by allowing multiple devices to share the same 9” x 11” vertical footprint

1000 Hour Maximum Timer Limit
• Provides users with the time that they need to collect all necessary data

USB Connectivity
• For PC Connection

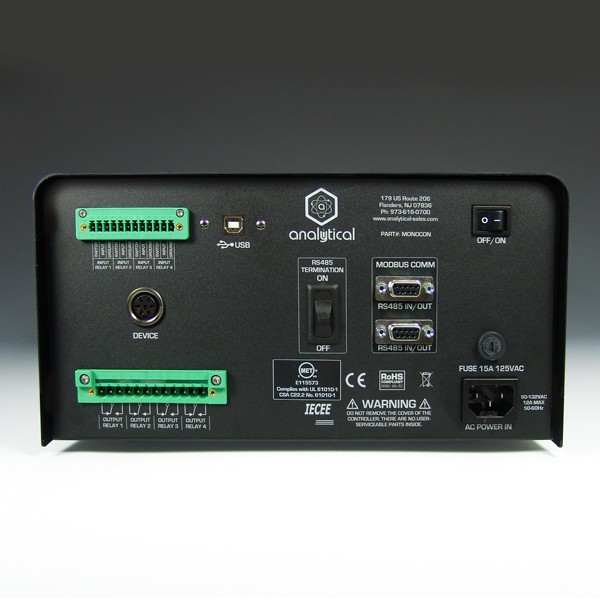

Modbus RS485
• Allows the controller to be connected as part of a Modbus RS485 chain. This allows up to 31 controllers to be used simultaneously.
• A list of Modbus serial commands is available

Includes MONOCON Controller, power cord, USB cable, 1 output relay terminal block, 1 input relay terminal block, and manual.

Units:

Each



Download Manual
Download: monocon_manual_rev1d.pdf



MODBUS Reference Guide
Download: MODBUS_Reference_Guide_rev1b.pdf
